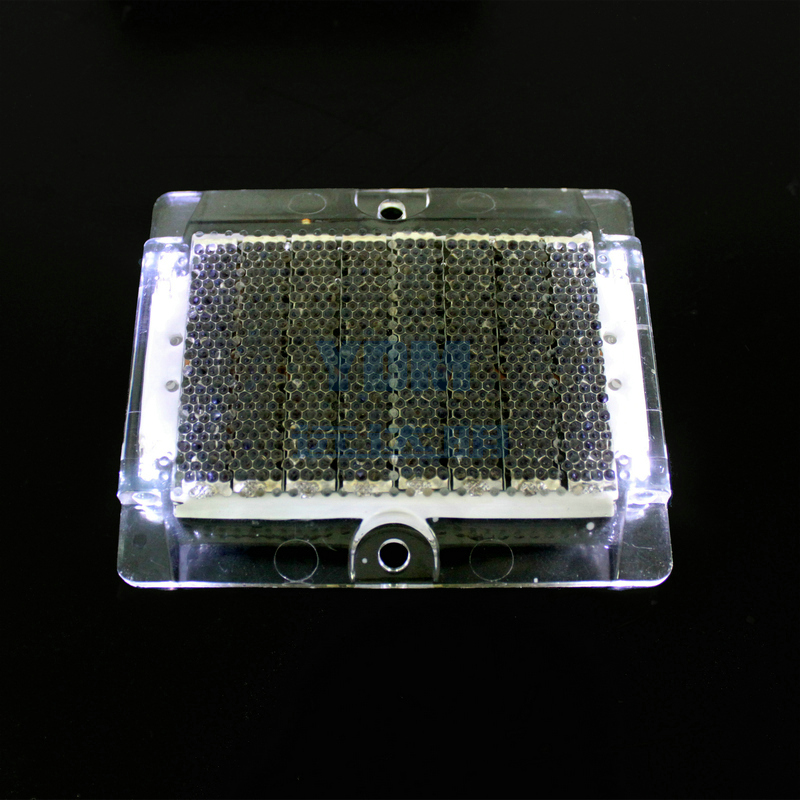

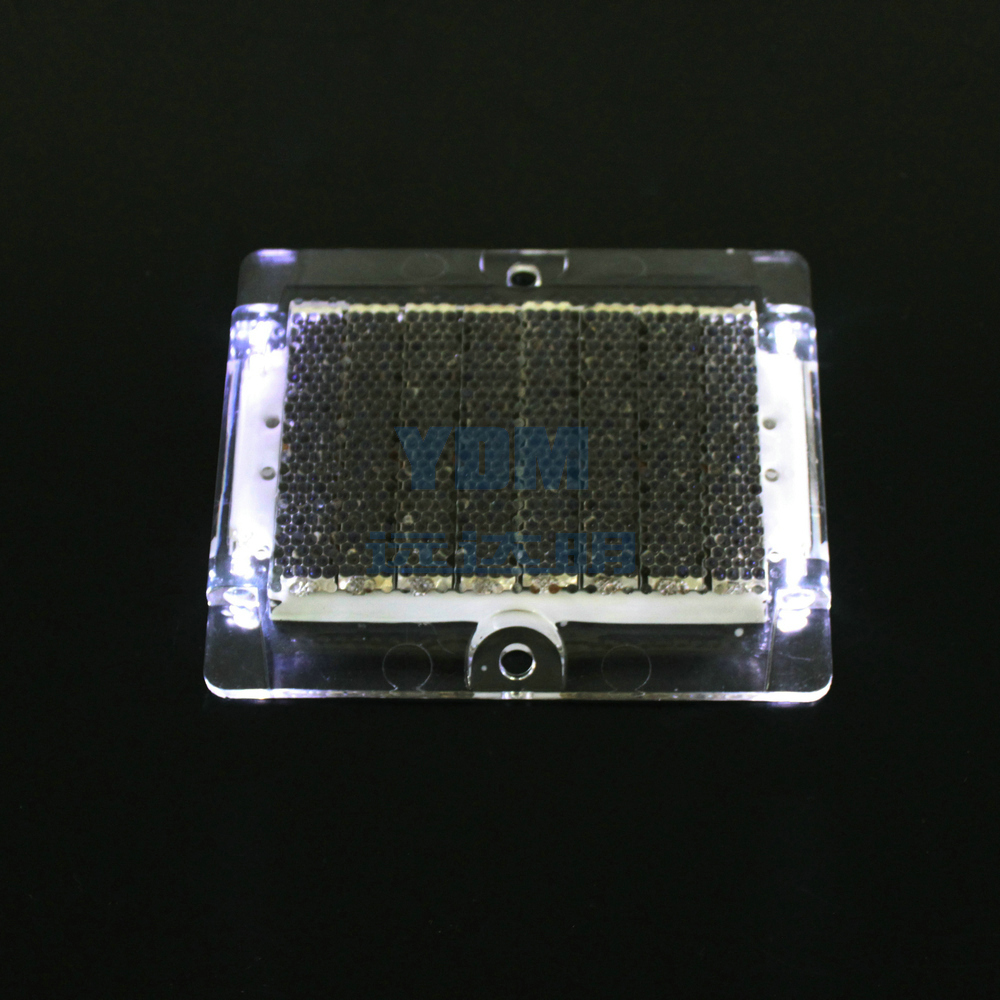

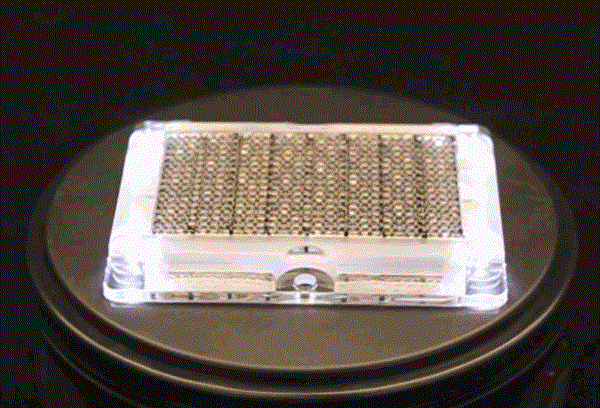

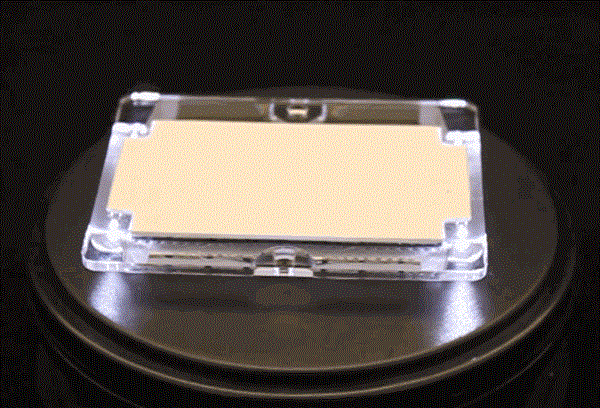

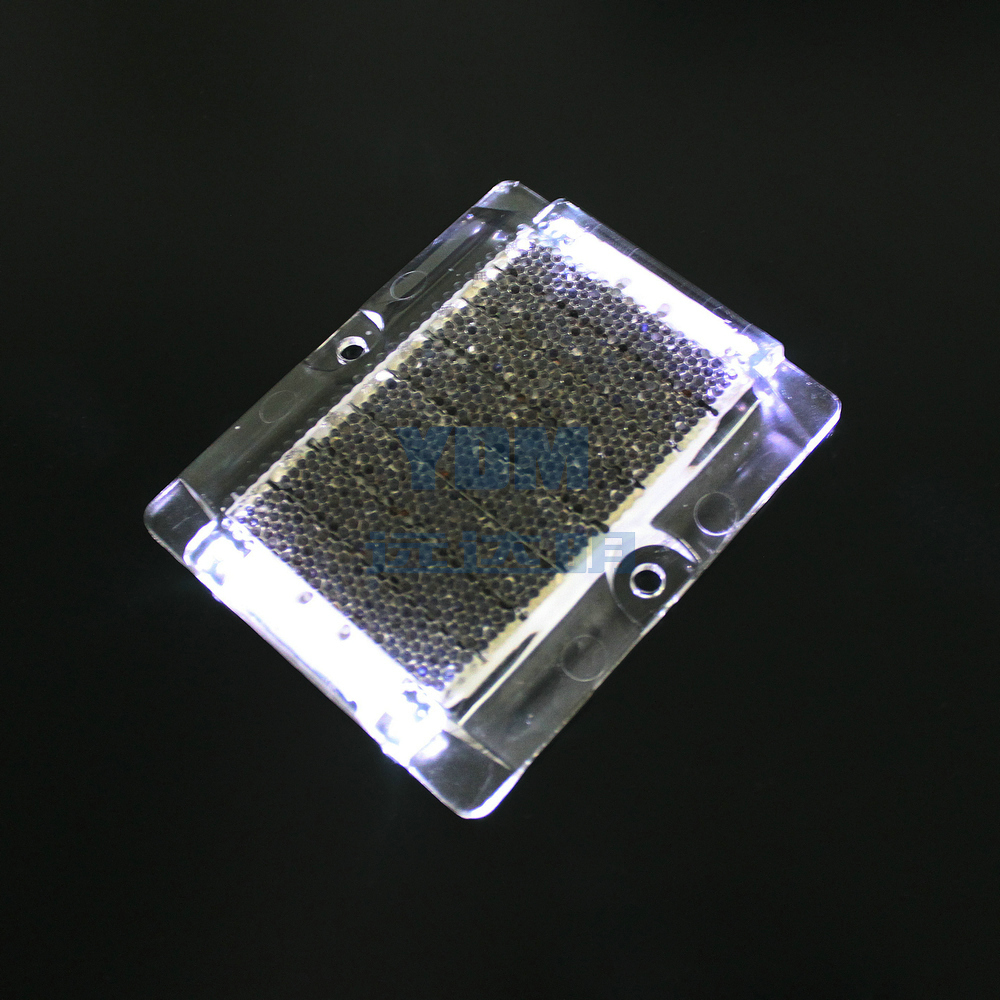

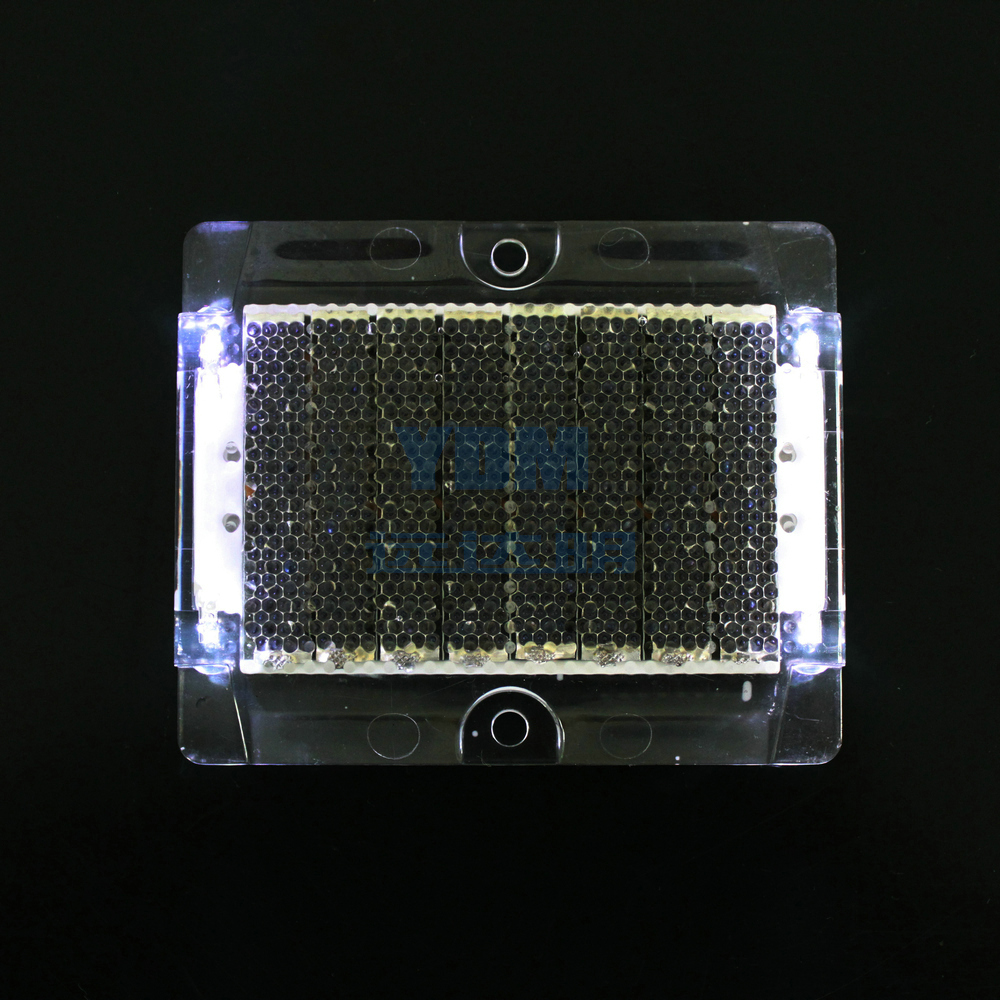

Mini Ultra Thin Solar Road Stud

Item No.: RSPS-F2-UF/S-M
RSPS-F1-UF-M One-way flashing light
RSPS-F2-UF-M Two-way flashing light
RSPS-F1-US-M One-way steady light
RSPS-F2-US-M Two-way steady light

Key Features& Spot lighting:
9.8mm height only
Mini size, ultra thin design, reduce the impact from car or cycle
Flexible solar panel
10 tons compression resistance
Anti-impact and IP68 design
    • Size
      103x85x9.8mm
    • Net Weight
      0.107kg
    • Material
      Polycarbonate+ epoxy filler
    • LED
      φ3mm, one-way 2 pcs,two-way 4 pcs,
    • LED Working Mode
      Steady or Flash (2HZ or upon request)
    • Luminous intensity
      5000mcd
    • View distance
      over 500m
    • Color
      Red/Yellow/White/Blue/Green
    • Solar Panel
      Flexible solar panel 4V 80MA
    • Battery
      Anti-heat Li battery /3.2V 500MAH
    • Battery Life span
      More than 3 years
    • Charge time
      8 hours @100 Klux(sunny day)
    • Working time
      72 hours for Flashing Type(2Hz)
    • Activation
      photo sensor
    • Starting intensity
      500Lux
    • Compression resistance
      over 10 tons
    • Working temperature
      -20℃~+70℃
    • Ingress Protection
      IP68
    • Warranty
      One years for road side usage
  • Application:

    Ultra thin design, application in road side, cycle path, park, guardrail and etc.


  • Item No.: RSPS-F2-UF/S-M
    RSPS-F1-UF-M One-way flashing light
    RSPS-F2-UF-M Two-way flashing light
    RSPS-F1-US-M One-way steady light
    RSPS-F2-US-M Two-way steady light

    Key Features& Spot lighting:
    9.8mm height only
    Mini size, ultra thin design, reduce the impact from car or cycle
    Flexible solar panel
    10 tons compression resistance
    Anti-impact and IP68 design
